Square D by Schneider Electric Square D - HOM3060M200PCVP 200 Amp 30-Space 60-Circuit Indoor Main Breaker Load Center with Cover
4.6 (82 items)
Limited Time Sale$119.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218554879 | Release Date | 2026/05/03 | List Price | $79.60 | Model Number | 218554879 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

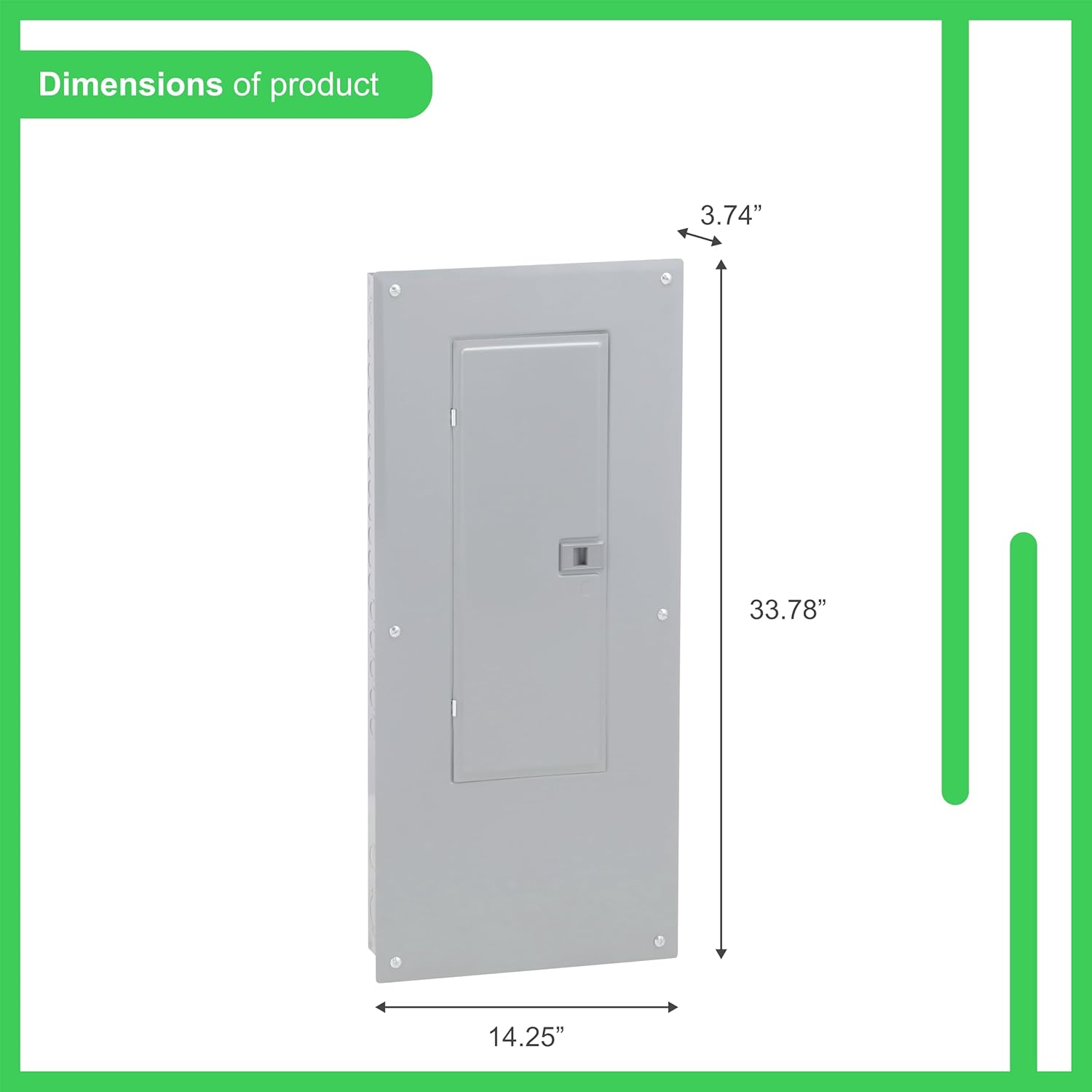

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Load center is also supplied with a two pole 30A 120/240 VAC circuit breaker and a one pole 20A 120/240 VAC circuit breaker. Homeline load center provides a 22 kA breaking capacity. This system provides 30 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 33.77 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
- Includes a fully distributed neutral bar, allowing for the installation of Homeline Plug-on Neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes (3) HOM120, (2) HOM230 and a combination flush/surface cover
- Accommodates plug-on secondary surge arrestor (sold separately)
| UPC | 785901977827 |
|---|---|
| Model | HOM3060M200PCVP |
| Brand Name | Schneider Electric |
| Phase Type | Single Phase |
| Unit Count | 1.0 Count |
| Item Weight | 33.9 Pounds |
| Part Number | HOM3060M200PCVP |
| Manufacturer | Schneider Electric (Home Improvement) |
| Material Type | Plastic |
| Item Type Name | Square D - HOM3060M200PCVP 200 Amp 30-Space 60-Circuit Indoor Main Breaker Load Center with Cover |
| Maximum Current | 200 Amps |
| Number Of Circuits | 60 |
| Included Components | ndoor Main Breaker Load Center with Cover |
| Warranty Description | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |
| Item Dimensions L x W x H | 14.25"L x 3.75"W x 33.78"H |
| Global Trade Identification Number | 00785901977827 |
